Perimeter Protection with High-Impact and Crash-Rated Bollards

In today’s world, ensuring the safety and security of buildings, public spaces, and critical infrastructure has become a top priority. High-impact and crash-rated bollards play a crucial role in perimeter protection, serving as effective barriers against unauthorized vehicle access and potential terrorist attacks. This article explores the functionality, benefits, and types of crash-rated bollards, as well as their importance in enhancing security measures.

Understanding Crash-Rated Bollards

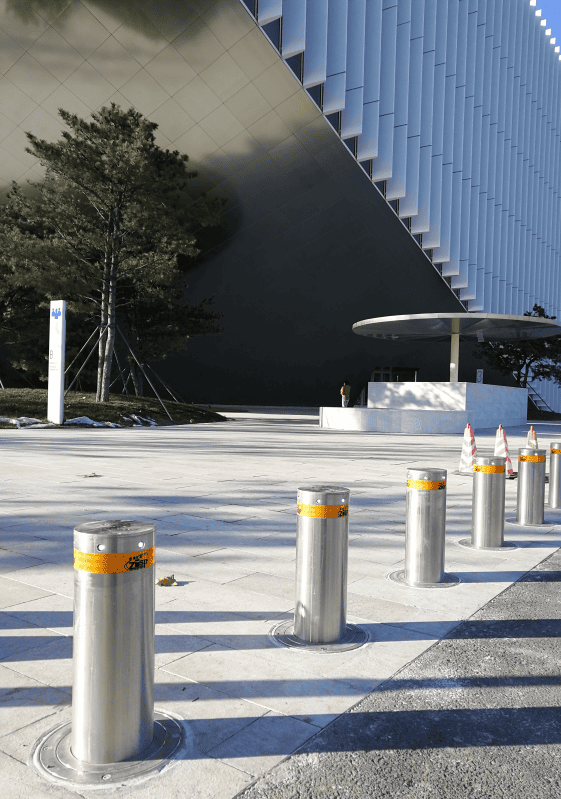

Crash-rated bollards are specifically designed to withstand high-impact collisions. These robust barriers are tested to resist the force of vehicles, making them essential in high-risk areas. High-impact and crash-rated bollards are categorized based on their K-ratings, which measure their ability to stop vehicles of varying weights and speeds. For instance, K4 crash rated bollards can halt a vehicle weighing up to 15,000 lbs traveling at 30 mph, while K12 crash rated bollards can stop the same weight at 50 mph.

The Development of K-Ratings

The concept of K-ratings was developed post-9/11, focusing on enhancing security against deliberate vehicular attacks. The U.S. Department of State revived this rating system to evaluate the stopping power of barriers. The K-rating system classifies bollards based on their performance in stopping vehicles, ensuring they can effectively protect critical infrastructure.

The Significance of ASTM Ratings

The American Society for Testing and Materials (ASTM) established a standardized testing system for crash-rated barriers. ASTM F2656 measures vehicle penetration at various speeds and weights, providing a comprehensive assessment of a bollard’s effectiveness. While the K-rating remains prevalent in discussions, ASTM ratings offer a more detailed evaluation of barrier performance, making it easier for planners to select suitable options for their needs.

The Importance of High-Impact and Crash-Rated Barriers

High-impact and crash-rated barriers provide several critical benefits, particularly in urban environments where the risk of accidents and intentional attacks is heightened. These barriers not only deter unauthorized access but also minimize damage and injury in the event of a collision. Here are some key advantages:

1. Enhanced Security: Crash-rated bollards act as a first line of defense against vehicular attacks, making them essential for government buildings, military installations, and crowded public spaces.
2. Versatility: Available in various forms—fixed, removable, and retractable—crash-rated bollards offer flexibility in deployment based on specific security needs. Crash-rated removable bollards can be used in areas requiring temporary access control.
3. Aesthetic Integration: Bollards can be customized to match architectural styles, ensuring they blend seamlessly into their surroundings while maintaining their protective function.

Installation Considerations for Crash-Rated Bollards

Installing crash-rated bollards requires careful planning and consideration. Factors such as soil type, traffic patterns, and potential threat levels must be assessed to determine the optimal placement and type of bollard. Here are some key points to consider:

Distance from Structures	Professional Installation	Environmental Factors
Crash-rated bollards should be positioned far enough from buildings to prevent damage from explosives or debris in case of an attack.	Specialized installation teams ensure that bollards meet safety standards and perform as intended. This may include additional subgrade footings for enhanced stability.	Understanding the site’s geology and existing infrastructure is crucial to preventing complications during installation.

Combining High-Impact and Crash-Rated Bollards

Integrating both high-impact and crash-rated bollards creates a layered security approach. High-impact bollards can serve as a “soft perimeter,” providing initial deterrence, while crash-rated bollards form a “hard perimeter” closer to vulnerable structures. This dual-layer strategy enhances overall security by creating multiple barriers against potential threats.

Anti-Terrorist Bollards

Anti-terrorist bollards are specifically designed to meet the requirements of high-risk facilities. These crash-rated barriers provide robust defenses against deliberate attacks, ensuring that critical infrastructure can withstand potential threats. By understanding the specific risks and vulnerabilities of a site, security planners can select the appropriate type of crash-rated barriers.

Cost Considerations for Crash-Rated Bollards

When evaluating how much crash-rated bollards cost, it’s essential to consider various factors, including material, installation complexity, and maintenance. Generally, crash-rated fixed bollards are more expensive than standard bollards due to their rigorous testing and specialized installation requirements. However, the investment is justified by the enhanced protection they provide.

Conclusion

Perimeter protection with high-impact and crash-rated bollards is vital for maintaining safety in today’s unpredictable world. These barriers not only deter unauthorized access but also provide critical protection against potential vehicular attacks. By understanding the importance of K-ratings, ASTM standards, and installation considerations, organizations can make informed decisions about their security measures.

For optimal security, a combination of crash-rated bollards and high-impact crash-rated barriers should be employed, tailored to the specific needs of each site. As urban environments continue to evolve, the role of these protective measures will only grow in importance, ensuring that public spaces remain safe and secure for everyone.
