Rising Beam Gate
impact test video by IWA 14-1 7200kg/48kmh
Movement Principle: Manual / Hydraulic
Intercept Width: 3~8m
Rising Speed: Manual / 7~15s
Intercept Height: 820mm
Barrier Rebar Foundation: 1000*500*1150mm L*W*H
Concrete Foundation Dimension: 1600*1400*950mmL*W*H
Temperature Rating: -40℃~+70℃
Voltage: N/A / AC 220V/AC 380V
Controls: N/A / Multi-Function PLC
Crash Rated: IWA 14-1，Penetration distance 0.6 meters, P1

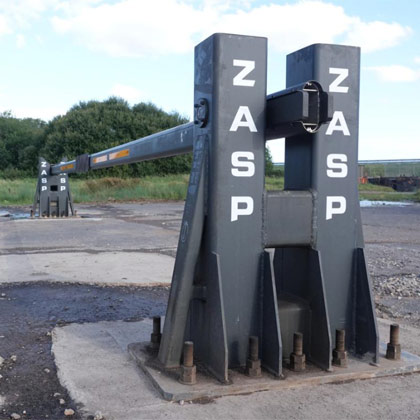

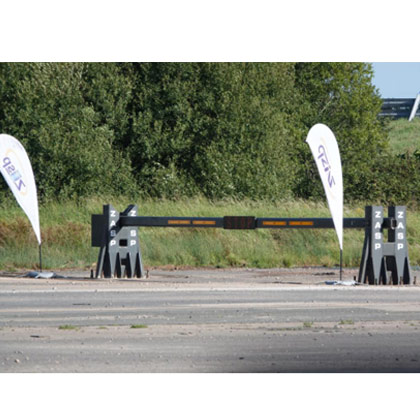

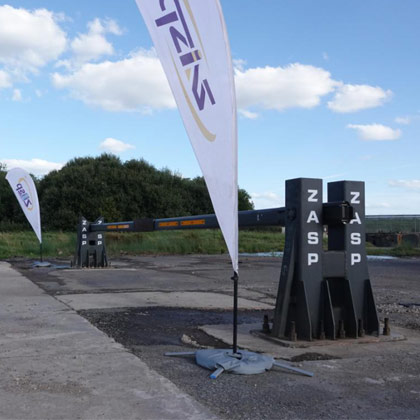

ZASP new product range launched in 2021 with Heavy Duty Rising Beam Gate Milita BA-M301/HA301, it has been independently physically tested in a number of full-scale crash tests conducted in accordance with IWA 14-1 standard 7,200KG truck travelling at 48kph by the HORIBA MIRA at UK, intercept width 8 meters, penetration distance 0.6 meters, P1.
Two type beam gates for market selections, Hydraulic Automatic Beam Gate and Manual Beam Gate, both type intercept widths from 3~8 meters, customized color service available.
The Heavy Duty Rising Beam Gate Milita BA-M301/HA301 is a highly dependable security product that will easily interface with a wide range of control equipment. Assembled in our fabrication facilities using heavy gauge materials to give maximum strength and durability. The Heavy Duty Rising Beam Gate Milita BA-M301/HA301 is a traditional rising arm barrier security barrier with the benefits of high-level physical protection.
